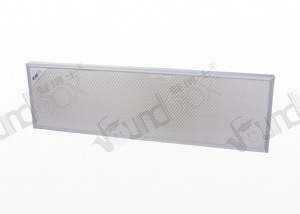

产品介绍
型 号：T50LVX / T100LVX
安装方式：水平，垂直 （配件：角钢、轻钢龙骨，螺栓，抱箍，拉柳钉，钢丝绳）
颜 色：黑/白玻纤布或彩色常规布可选择
重 量：50厚6.6kg/m2 100厚13kg/m2
用 量：顶棚面积 45-60%
结 构：四铝合金框内置欧文斯科宁吸声棉，外包吸声玻纤毡 难燃/不燃吸声布加铝网饰面。
防火性能：A级/B1级
环 保：甲醛翻释放量≤0.4mg/L,满足《室内装饰装修材料及人造板棉制品中甲醛释放量》（GB18580－2001）24小时释放的玻璃纤维颗粒释放量为 0mg/m3,优于国E1类标准要求，标限值0.15mg/m3标准。
常用规格：600x1200x50/100mm 2400x1200x50/100mm
适用范围：体育馆、多功能厅堂等大空间场所控制混响时间。
Description
Model: T50LVX / T100LVX
Installation: horizontal, vertical (Accessories: Angle, light steel keel bolts, hoop, pull rivets, wire rope)
Color:Black / white fiberglass cloth or color conventional cloth selectable
Weight: 50mm Thickness6.6kg/m2 100mm Thickness13kg/m2
Dosage: 45-60% of the roof area
Structure: Four aluminum frame built-in sound-absorbing cotton Owens Corning, outsourcing sound absorbing glass fiber mat flame retardant / non-flammable sound-absorbing fabric finishes.
Fire Performance: A / B1 level Environmental protection: formaldehyde turn release ≤ 0.4mg / L, to meet the "interior decoration materials and wood-based panels cotton products formaldehyde emission (GB18580-2001) 24-hour release of glass fiber particles release 0mg/m3 better than the national E1 class standard requirements, the standard limit 0.15mg/m3 standard.
Common Specifications: 600*1200*50/100mm 2400*1200*50/100mm
Scope: Stadium, multi-function halls and other large space to control the reverberation time.
