产品介绍
型 号：T100LV
安装方式：水平，垂直 （配件：角钢、轻钢龙骨，螺栓，抱箍，拉柳钉，钢丝绳）
颜 色：黑/白玻纤布或彩色常规布可选择
重 量：11.5kg/m2
用 量：顶棚面积 45-60%
结 构：四铝合金框内置欧文斯科宁吸声棉，外包吸声玻纤毡难燃/不燃吸声布饰面。
防火性能：A级/B1级
常用规格：600x1200x100mm 2400x1200x100mm
适用范围：体育馆、多功能厅堂等大空间场所控制混响时间。

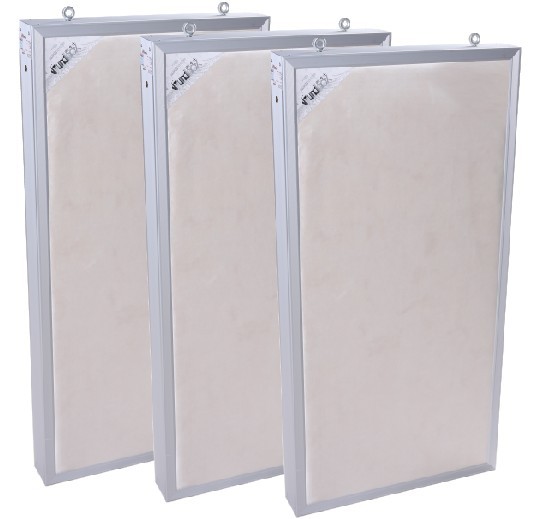

Description
Type: T100LV
Installation: horizontal, vertical (Accessories: Angle, light steel keel bolts, hoop, pull rivets, wire rope)
Color: Black / white fiberglass cloth or color conventional cloth selectable
Weight: 11.5kg/m2
Dosage: 45-60% of the roof area
Structure: Four aluminum frame built-in sound-absorbing cotton Owens Corning, outsourcing sound absorbing glass fiber mat flame retardant / non-flammable sound-absorbing fabric finishes.
Fire Performance: A / B1 level Environmental protection: formaldehyde turn release ≤ 0.4mg / L, to meet the "interior decoration materials and wood-based panels cotton products formaldehyde emission (GB18580-2001) 24-hour release of glass fiber particles release 0mg/m3 better than the national E1 class standard requirements, the standard limit 0.15mg/m3 standard.
Common Specifications: 600*1200*100mm 2400*1200*100mm
Scope: Stadium, multi-function halls and other large space to control the reverberation time.
